Quartz Product
Location:Home >> Products >> Quartz Product

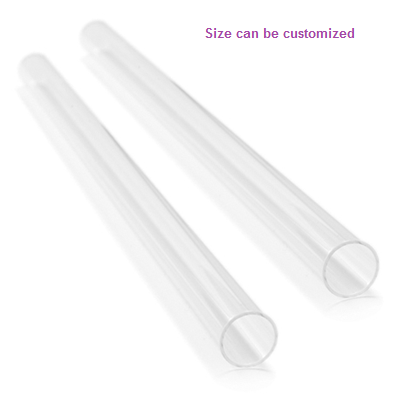

Quartz Sleeve
Quartz Sleeve
Information
Most Commonly Used Quartz Sleeves
|
Inside Diameter mm
|
Outside Diameter mm
|
Wall Thickness mm
|
Suggested Applications
|
|
17.0
|
19.0
|
1.00
|
15mm O.D. Standard and High Output bare lamps without capping
|
|
18.0
|
20.5
|
1.25
|
|
|
19.6
|
22.0
|
1.20
|
|
|
20.0
|
22.0
|
1.00
|
15mm O.D. Standard and High Output lamps
|
|
20.0
|
22.5
|
1.25
|
15mm O.D. Standard and High Output lamps
|
|
20.0
|
23.0
|
1.50
|
15mm O.D. Standard and High Output lamps
|
|
22.0
|
24.5
|
1.25
|
15mm O.D. Standard, High Output and Amalgam lamps
|
|
22.0
|
25.0
|
1.50
|
15mm O.D. Standard and High Output lamps
|
|
25.0
|
28.0
|
1.50
|
19mm O.D. Standard, High Output and Amalgam lamps
|
|
26.0
|
30.0
|
2.00
|
19mm O.D. Standard and High Output lamps
|
|
26.4
|
30.0
|
1.80
|
19mm O.D. Standard and High Output lamps
|
|
30.0
|
33.0
|
1.50
|
19mm O.D. Standard and High Output lamps
|
|
32.0
|
36.0
|
2.00
|
25mm O.D. Standard, High Output and Amalgam lamps
|
|
34.0
|
38.0
|
2.00
|
|
|
35.0
|
38.0
|
1.50
|
|
|
42.0
|
45.0
|
1.50
|
32mm O.D. Standard, High Output and Amalgam lamps
|
|
44.0
|
48.0
|
2.00
|
32mm O.D. Standard, High Output and Amalgam lamps
|
|
45.0
|
48.0
|
1.50
|
32mm O.D. Standard and High Output lamps
|
